Product Description
BendPak PL-6KT Triple Parking Lift, 18,000 Lb. Capacity, Independent Platforms, SPECIAL ORDER - 5175154
Our 6,000-lb. capacity, triple-wide parking lift turns a three-car garage into a six-car powerhouse without making your space look clunky or cluttered. No columns split between the lift decks, which makes this independent platform-style car lift one of the slickest vehicle stackers money can buy.
The Ultimate Triple-Wide Fantasy Lift
The PL-6KT triple-wide parking lift is one of the most efficient parking units ever designed. The key to its design is a streamlined, four-column structure that leaves all three lifting platforms free from surrounding posts, making it safer and easier to enter and exit parked vehicles. This car lift is equally useful in large residential garages and commercial spaces. Municipal parking lots and custom shops looking for extra parking don’t need to waste money buying multiple lifts that may or may not even fit in their space. A triple-wide lift is the most efficient way to turn three parking spots into six.
One lift houses six vehicles
If you’re in need of a lot of extra parking, your first instinct may be to buy multiple parking lifts. However, the smarter bet is to order a BendPak triple-wide, independent platform lift. These unique lifts house six vehicles for long or short-term storage. It’s much more space-efficient to buy one extra-wide car lift than it is to buy three smaller ones. Each platform will lift and hold up to 6,000 lbs., so a total of 18,000 lbs. can be loaded up at a time.
Three independent platforms

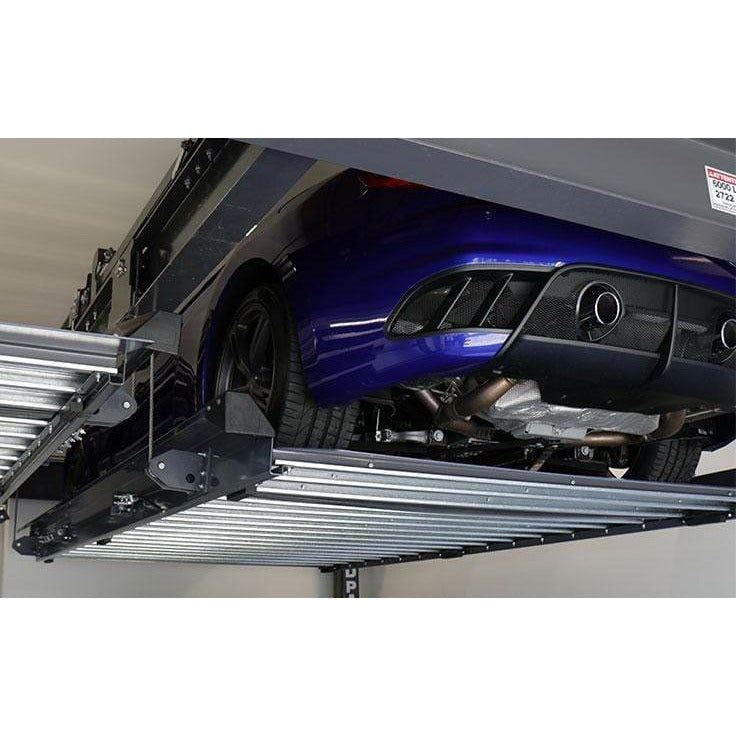

Three full-width, galvanized steel platforms cover the length and width of this car lift. Resistant to oil, weather and abuse, these decks will easily last the lifetime of your unit. Each platform moves independently of the other two, which means more vehicles can be stored without rummaging through the entire bottom row just to get to one raised vehicle. The PL-6KT is a triple-wide marvel that keeps you organized without slowing you down.
Internally routed hydraulic lines and cables
All hydraulic lifting cylinders and lifting cables are routed internally throughout the mammoth structure of this lift. Clever engineering prevents the extensive network of cables from awkwardly crossing over each other, so the platforms rise and descend safely at all times.
Single-position, auto-engaging lock
All three platforms automatically lock into place at the max rise position. This is the safest way to store vehicles on your parking lift, as the platform and hydraulic/suspension system are virtually incapable of failing, even in the extremely unlikely event of hydraulic hose or cable failure.
Park safer inside
Don’t risk keeping your vehicles exposed to the elements. Theft, weather and environmental damage can wreak havoc on your property. Keep your vehicles bundled up safe and sound. They’re second in importance only to your children, and this parking lift is a cradle your cars will never outgrow.
Power options
The PL-6KT model car lift operates on 110V or 220V power. International voltages are available upon request.
Features & Specs
- 6,000-lb. capacity per deck (18,000 lbs. total)
- Perfect for cars, light trucks, motorcycles and ATVs
- Rugged I-beam and C-channel construction
- Built-in wheel stops
- Wide base-plate for maximum stability
- Front and rear wheel chocks
- Superstructure features durable powder-coat finish
- Dual hydraulic cylinders with heavy-duty steel lifting cable
- Heavy-duty steel construction
- Reliable electric-hydraulic power system
- Full-width platform to keep bottom vehicles protected
- Simple controls
- Oversized sheave diameter reduces cable fatigue
- High-speed lifting
- Features heavy-duty 3/8" aircraft cable
- Rugged 1.25" roller axles
- Multi-position safety locks in each column
- Runways feature non-skid surface
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
Style
Style:
Multi-Platform Parking Lift
Capacity
Lifting Capacity:
6,000 lbs. (2,722 kg)
Overall Width:
308” (7,834 mm)
Overall Length:
236.5” (6,008 mm)
Overall Height:
123.75" (3,140 mm)
Min. Runway Height:
9” (230 mm)
Max. Rise:
89” (2,261 mm)
Width Between Posts:
283" (7,197 mm)
Platform Width:
82" (2,086 mm)
Platform Length:
152" (3,862 mm)
Drive Clearance:
93" (2,374 mm)
Locking Positions:
1
Lifting Time:
30 seconds
Standard Motor:
220 VAC / 60 Hz / 1Ph
Shipping Weight:
8,889-lbs. (4,032 kg)
Shipping Dimensions:
310'' x 32'' x 63'' (7,874 mm x 813 mm x 1,600 mm)
Manuals
BendPak PL-6KT User Manual
BendPak PL-6KT Sales Sheet
BendPak PL-6KT Warranty
