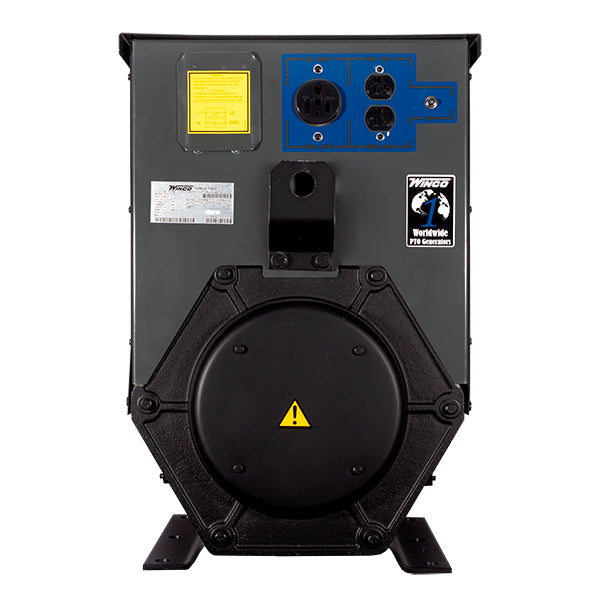

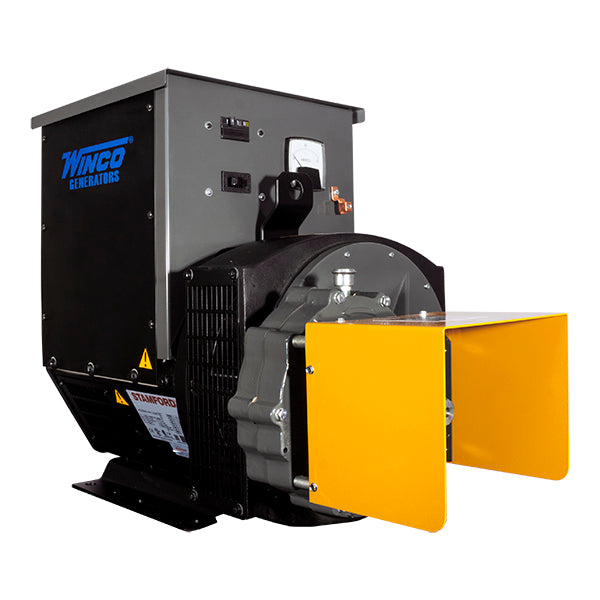

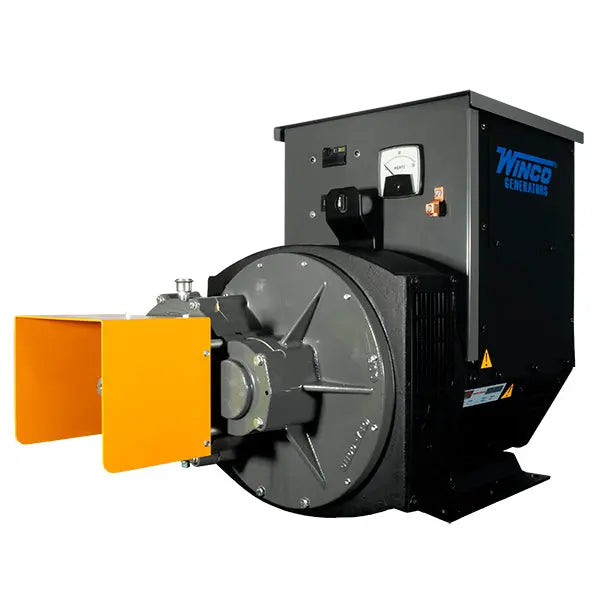

55PTO 346/600V 3-Phase 540 RPM Generator
Key Features and Benefits:
-
High-Power Output
Delivers 55,000 standby watts, providing dependable three-phase 346/600V power with a 540 RPM gearcase.
-
Durable & Proven Construction
WINCO’s rugged gearcases, backed by over 60 years of reliability, ensure lasting durability.
-
Clean & Stable Energy
Low harmonic distortion guarantees quality power suitable for farm and home applications.
-
Accurate Output Monitoring
A large 3 ½" frequency meter provides precise output verification.
-
Advanced Safety & Circuit Protection
-
Premium circuit breakers allow quick identification of tripped circuits.
-
Protective PTO shield prioritizes operator safety.
-
Comprehensive Load Testing
Every unit undergoes 100% load testing before leaving the facility—ensuring consistent performance and reliability.
-
Effortless Electrical Connection
Comes equipped with a 5-wire Anderson full-power plug for seamless integration.
Technical Specifications:
| Specification |
Details |
| Standby Watts |
55,000 |
| Standby Amps |
52 @ 1.0 PF / 66 @ 0.8 PF |
| Continuous Watts |
46,400 |
| Continuous Amps |
44 @ 1.0 PF / 55 @ 0.8 PF |
| Voltage Output |
346/600V Three Phase |
| Voltage Regulation |
AVR (Automatic Voltage Regulator) |
| 120/240 Anderson Connector |
175 Amps |
| PTO Shaft |
1 3/8" 6-spline, 540 RPM |
| Dimensions |
41" x 20" x 27" |
| Shipping Weight |
745 lbs. |
| Warranty |
3 Years |
| Assembly |
USA |
Optional TDM80 PTO Trailer
-
Design: Medium-sized PTO trailer compatible with a range of generators, including W10PTOS, W15PTOS, 27PTOC4, 30PTOC4, 35PTOC4, 50PTOC4, 55PTOC4, W70PTO, and W70PTOS.
-
Mobility: Features off-road tires for improved maneuverability across various terrains.
-
Dimensions: Measures 83.6 inches in length, 51.4 inches in width, and 24 inches in height.
-
Weight: Weighs approximately 175 pounds.
-
Manufacturing: Assembled in the USA.
Optional 54326-001 PTO Shaft
High-capacity 90 HP PTO shaft with a 540 RPM operating speed.
Designed for use with 27PTOC4, 30PTOC4, 35PTOC4, 50PTOC4, and 55PTOC4 generators (540 RPM models).
-
Power Capacity: Supports 29 to 50 kW.
-
Operating Speed: Runs efficiently at 540 RPM.
-
Connection Type: Features 1 3/8" 6-spline connectors on both ends.
-
Shaft Horsepower: Rated for up to 90 HP.
-
Operating Length: Adjustable between 37.6" (minimum) and 53.50" (maximum).
-
Overall Length: Ranges from 47.48" (minimum) to 66.48" (maximum).
-
Weight: Weighs approximately 40 lbs.
