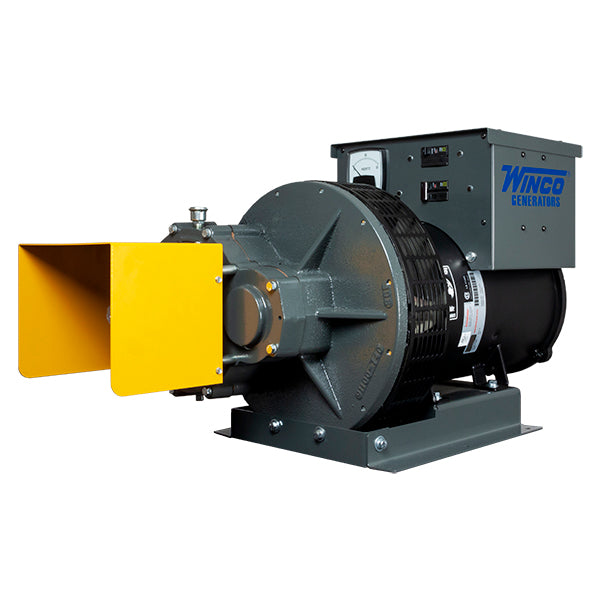

30PTO 120/208V 3-PH 540 RPM Generator
Key Features and Benefits
-
High-Powered Three-Phase Generator – Delivers 31,600 standby watts with a durable 540 RPM gearcase.
-
Rugged WINCO Gearcase – Proven strength and reliability for over 60 years.
-
Low Harmonic Distortion – Provides clean, stable power for agricultural and residential applications.
-
Large Frequency Meter – A 3.5-inch display ensures precise monitoring of power output.
-
Premium Circuit Breakers – Enables quick identification of tripped circuits.
-
Protective PTO Shield – Prioritizes safety during operation.
-
5-Wire Anderson Full Power Plug Included – Designed for secure and efficient connectivity.
-
100% Load Tested – Every unit undergoes full-load testing before shipment to ensure reliability.
Specifications
| Specification |
Details |
| Standby Power Output |
31,600 Watts |
| Standby Amps |
87 @ 1.0 PF / 109 @ 0.8 PF |
| Continuous Power Output |
26,900 Watts |
| Continuous Amps |
71 @ 1.0 PF / 102 @ 0.8 PF |
| Voltage Output |
120/208V Three Phase |
| Voltage Regulation |
Automatic Voltage Regulator (AVR) |

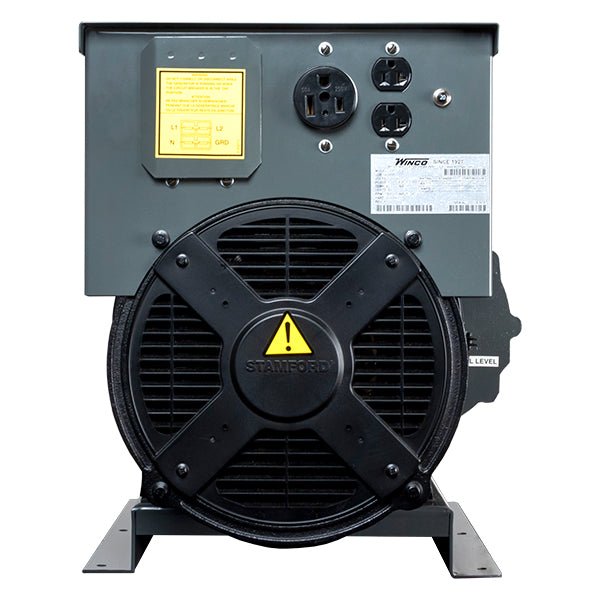

| 120V Receptacles |
(2) NEMA 5-20 20A |
| 120/240 Anderson Connector |
175 Amps |
| 240V Receptacles |
(1) NEMA 6-50R 50A |
| PTO Shaft |
1 3/8" 6-spline / 540 RPM |
| Dimensions |
37" x 21" x 24.3" |
| Shipping Weight |
472 lbs. |
| Unit Warranty |
3 Years |
| Manufactured In |
USA |
Optional TDM80 PTO Trailer
-
Design: Medium-sized PTO trailer compatible with a range of generators, including W10PTOS, W15PTOS, 27PTOC4, 30PTOC4, 35PTOC4, 50PTOC4, 55PTOC4, W70PTO, and W70PTOS.
-
Mobility: Features off-road tires for improved maneuverability across various terrains.
-
Dimensions: Measures 83.6 inches in length, 51.4 inches in width, and 24 inches in height.
-
Weight: Weighs approximately 175 pounds.
-
Manufacturing: Assembled in the USA.

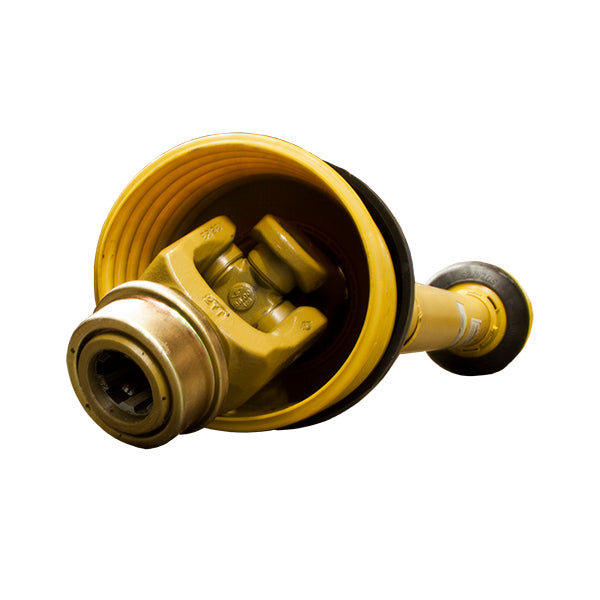

Optional 54326-001 PTO Shaft
High-capacity 90 HP PTO shaft with a 540 RPM operating speed.
Designed for use with 27PTOC4, 30PTOC4, 35PTOC4, 50PTOC4, and 55PTOC4 generators (540 RPM models).
-
Power Capacity: Supports 29 to 50 kW.
-
Operating Speed: Runs efficiently at 540 RPM.
-
Connection Type: Features 1 3/8" 6-spline connectors on both ends.
-
Shaft Horsepower: Rated for up to 90 HP.
-
Operating Length: Adjustable between 37.6" (minimum) and 53.50" (maximum).
-
Overall Length: Ranges from 47.48" (minimum) to 66.48" (maximum).
-
Weight: Weighs approximately 40 lbs.
