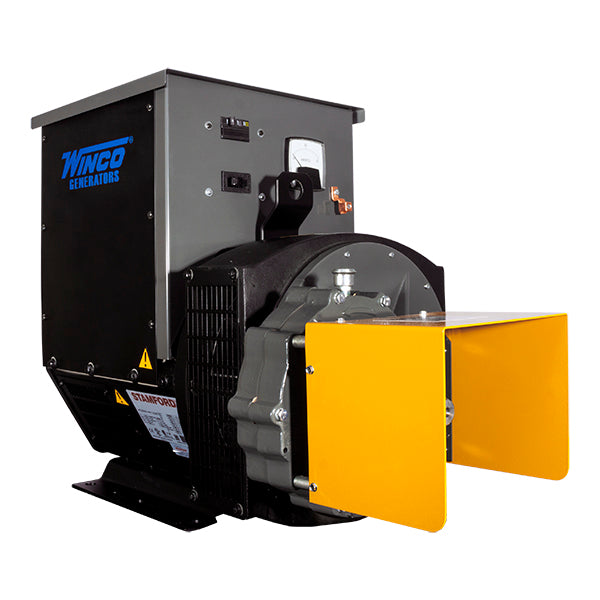

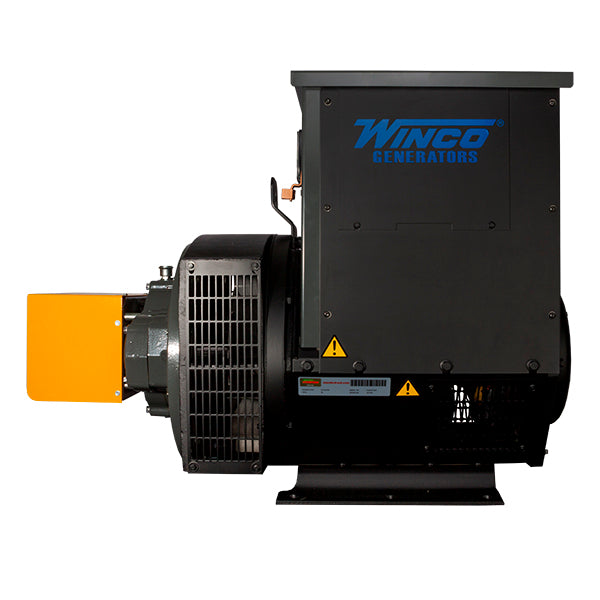

50PTO 120/208V 3-PH 1000 RPM Generator
Key Features and Benefits
-
High-Powered Three-Phase Generator – Provides 50,000 standby watts with a durable 1000 RPM gearcase.
-
Rugged WINCO Gearcase – Built for long-term reliability, backed by over 60 years of proven performance.
-
Low Harmonic Distortion – Delivers clean and stable power suitable for agricultural and residential applications.
-
Large Frequency Meter – A 3.5-inch display ensures precise monitoring of power output.
-
Premium Circuit Breakers – Allows for quick and clear identification of tripped circuits.
-
Protective PTO Shield – Designed with safety as a priority.
-
5-Wire Anderson Full Power Plug – Enables secure and efficient connectivity.
-
100% Load Tested – Every unit undergoes full-load testing before shipment to ensure reliability.
Specifications
| Specification |
Details |
| Standby Power Output |
50,000 Watts |
| Standby Amps |
138 @ 1.0 PF / 173 @ 0.8 PF |
| Continuous Power Output |
42,000 Watts |
| Continuous Amps |
116 @ 1.0 PF / 145 @ 0.8 PF |
| Voltage Output |
120/208V Three Phase |
| Voltage Regulation |
Automatic Voltage Regulator (AVR) |
| 120V Receptacles |
(2) NEMA 5-20 20A |
| 120/240 Anderson Connector |
175 Amps |
| 240V Receptacles |
(1) NEMA 6-50R 50A |
| PTO Shaft |
1 3/8" 6-spline / 1000 RPM |
| Dimensions |
41" x 20" x 27" |
| Shipping Weight |
680 lbs. |
| Unit Warranty |
3 Years |
| Manufactured In |
USA |
Optional TDM80 PTO Trailer
-
Design: Medium-sized PTO trailer compatible with a range of generators, including W10PTOS, W15PTOS, 27PTOC4, 30PTOC4, 35PTOC4, 50PTOC4, 55PTOC4, W70PTO, and W70PTOS.
-
Mobility: Features off-road tires for improved maneuverability across various terrains.
-
Dimensions: Measures 83.6 inches in length, 51.4 inches in width, and 24 inches in height.
-
Weight: Weighs approximately 175 pounds.
-
Manufacturing: Assembled in the USA.
Optional 54961 PTO Shaft
Designed to handle up to 135 HP with a 1000 RPM operating speed.
Suitable for use with the following generators: 30PTOT4, 35PTOT4, 50PTOT4, 55PTOT4, 75PTOC-4, and 75PTOC-17 models (all 1000 RPM configurations).
-
Power Capacity: Rated for 25-75 kW output.
-
Operating Speed: Functions efficiently at 1000 RPM.
-
Connections: Features a 1 3/8" 6-spline connection on one end and a 1 3/8" 21-spline connection on the other.
-
Operating Length: Adjustable between 51.69" (minimum) and 55.71" (maximum).
-
Overall Length: Ranges from 65.31" (minimum) to 69.33" (maximum).
-
Weight: Weighs approximately 58 lbs.
