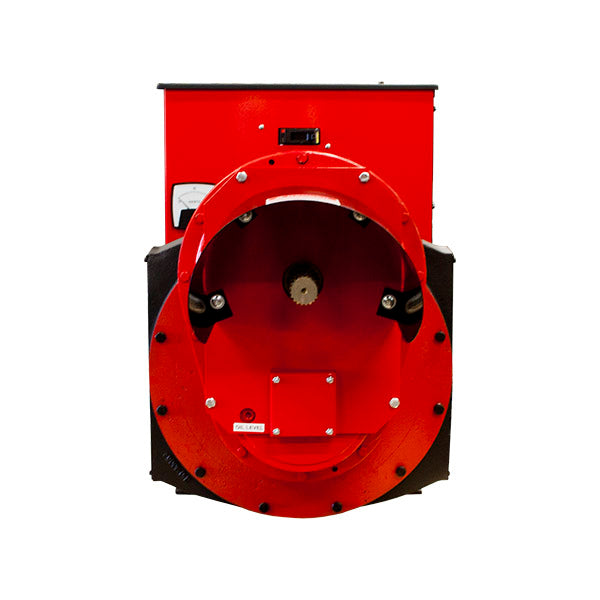

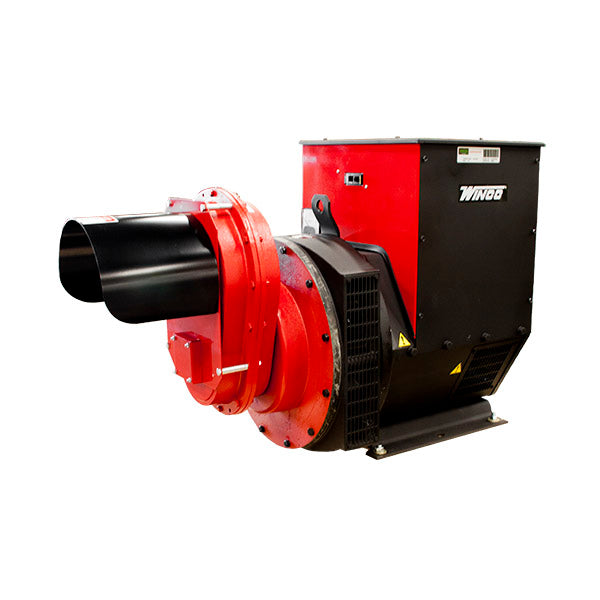

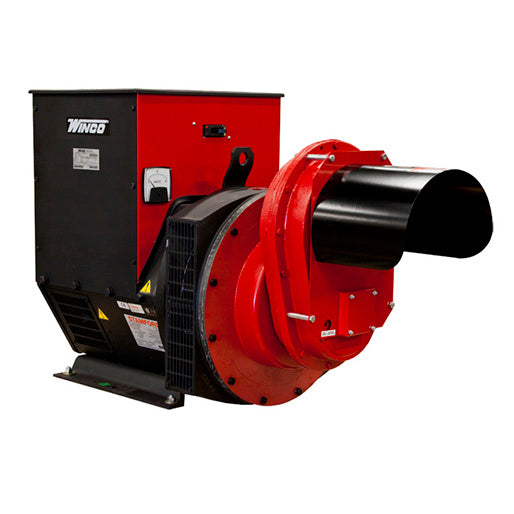

WINCO PTO Generator W150PTOS-3 1000RPM (64864-012)
Roll over image to zoom in Click on image to zoom
WINCO PTO Generator W150PTOS-3 1000RPM (64864-012)WINCO PTO Generator W150PTOS-3 1000RPM (64864-012)WINCO PTO Generator W150PTOS-3 1000RPM (64864-012)WINCO PTO Generator W150PTOS-3 1000RPM (64864-012)WINCO PTO Generator W150PTOS-3 1000RPM (64864-012)

WINCO PTO Generator W150PTOS-3 1000RPM (64864-012)

Save $1,320.00
WINCO
PTO Trailer (TDM91): No
PTO Shaft (SA12320): No
Price:
$15,180.00 $16,500.00
 More payment options

Description

W150PTOS-3

Key Features and Benefits

  • Low Harmonic Distortion – Provides clean, stable power suitable for both agricultural and residential applications.
  • Durable Cast Iron Gearcase with Helical Gears – Ensures smooth and efficient operation at 1000 RPM.
  • Large Frequency Meter – A 3.5-inch display for precise monitoring of power output.
  • Premium Circuit Breakers – Enables quick and clear identification of tripped circuits.
  • Protective PTO Shield – Designed with safety as a priority.
  • 100% Load Tested – Every unit undergoes full-load testing before leaving the facility, ensuring reliability.

Specifications

Specification Details
Power Output 150,000 Running Watts / 625 Running Amps
Voltage 120/240V Single Phase
Voltage Regulation Automatic Voltage Regulator (AVR)
120V Receptacles (1) NEMA 5-20 20A
240V Receptacles (1) NEMA 5-50 50A
Required PTO Horsepower 300 HP
PTO Input Speed 1000 RPM
Dimensions 46.9" x 27" x 30.4"
Weight 1474 lbs.
Unit Warranty 3 Years
Manufactured In USA

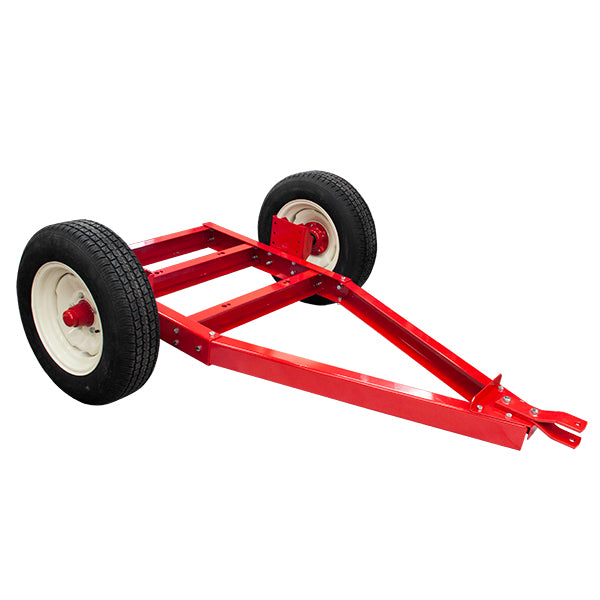

Optional TDM91 Large PTO Trailer

  • Features:
    • Designed as a large PTO trailer, compatible with a wide range of generators, including W70PTOS, W75PTOS, W85FPTOS, W100FPTOS, W105FPTOT, W120FPTOT, W145FPTOT, W150FPTOT-3, and W165FPTOT-18.
    • Equipped with off-road tires for enhanced maneuverability across challenging terrains.
  • Specifications:
    • Weight: Approximately 282 lbs.
    • Manufactured: Assembled in the USA.



Optional SA12320 PTO Shaft

Key Features

  • High-Power PTO Shaft – Rated at 257 HP with a 1000 RPM operating speed.
  • Precision Spline Connection – 1 3/4″ 20 Spline x 1 3/4″ 20 Spline ensures efficient and secure power transmission.
Specification Details
Power Rating 145-165 kW
Operating Speed 1000 RPM
Connections 1 3/4" 20 Spline x 1 3/4" 20 Spline
Shaft HP Rating 257 HP
Operating Lengths Min: 36.76" / Max: 55.04"
Overall Lengths Min: 51.26" / Max: 66.54"
Weight 65 lbs.
